Glass Cutting Machine

Automatic glass cutting machine used in glass cutting line for longitudinal and cross cutting of flat glass sheets

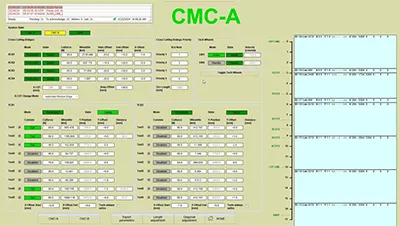

The automatic glass cutting machine is used for the longitudinal and cross cutting of flat glass sheets in production lines. The system is built around a cutter management module and motion control module, which calculate the optimal cutting strategy in real time based on order requirements and glass defect data.

By combining the transverse breaking system, cutter heads, pressure control, and an intelligent optimization system, the cold end glass production machine achieves efficient horizontal cutting. Multiple cutter heads for longitudinal and cross cutting allow flexible production of different glass sizes. Dynamic switching between cutting bridges ensures continuous, fault-free operation.

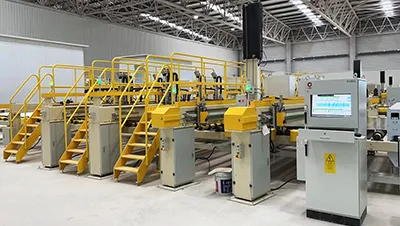

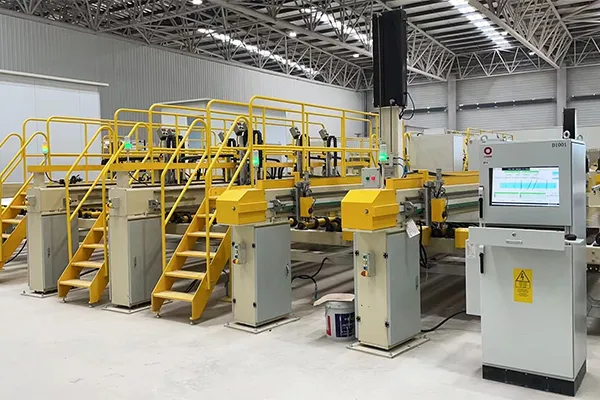

Automatic Glass Cross Cutting Machine (In-line Cutting)
Automatic Glass Cross Cutting Machine (In-line Cutting)
  • Power: 2.2kW/unit
  • Working pressure: 0.4MPa
  • Working accuracy: ±0.3mm
  • Max. cutting speed: 5m/s
  • Max. cutting width: 6000mm
  • Cutting thickness: 1-22mm
  • Cutting force: 0-250N
  • Number of cutting head: customizable
Request a Quote

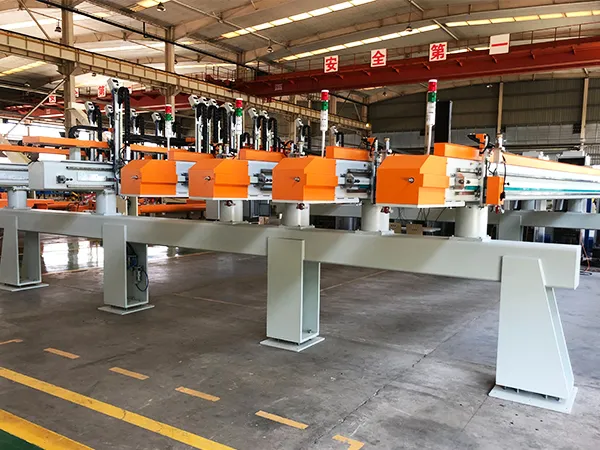

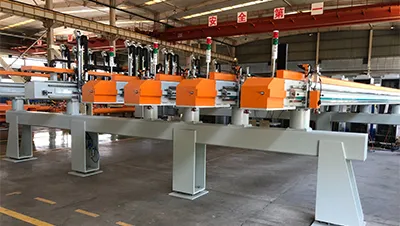

Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
  • Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
  • Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
  • Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
  • Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
    • Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
    • Min. power: 1.6kW/unit (depending on the number of cutting knives)
    • Working pressure: 0.4MPa
    • Working accuracy: ±0.3mm
    • Cutting capacity: can cut jumbo size glass into 7 smaller sheets
    • Cutting thickness: 1-22mm
    • Cutting force: 0-250N
    • Number of cutting head: customizable
    Request a Quote
    Features
    • High-precision cutting
      High-precision cutting
      The optimized cutting system employs advanced cutting technology and control, achieving precision of ±0.4 mm transversely and ±0.3 mm longitudinally.
    • Intelligent nesting algorithm
      Intelligent nesting algorithm

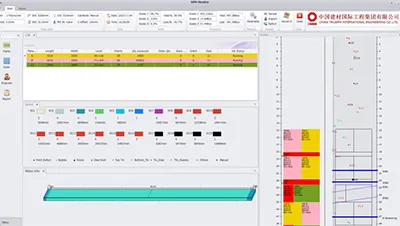

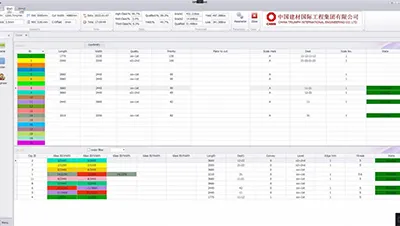

      Integrated smart nesting algorithms minimize material waste, improving finished product yield by 3%-5%.
    • Flexible stripping and optimization
      Flexible stripping and optimization
      The system supports minimum transverse stripping of 200 mm, mid-sheet stripping of 600 mm, and edge stripping of 60 mm, with optimization distances of up to 18 meters.
    • Online hot redundancy
      Online hot redundancy
      A unique hot redundancy function allows the system to switch during operation or in the event of a fault, ensuring uninterrupted glass production.
    • Comprehensive digital management
      Comprehensive digital management
      The system can be integrated with other glass production equipment and management platforms, enabling fully digitalized process control.
    Rlated Cold End Equipment
    Get in Touch for More Information
    Our Glass Equipment Covers

    The optimized cutting system is designed for seamless integration with other production equipment and management platforms. It allows the system to switch smoothly during operation or in the event of a fault. Even if the cutting bridge loses power, the rest of the system continues unaffected. This ensures greater stability, reliability, and uninterrupted production consistency.

    Glass transportation involves a high level of risk, so our shuttle conveyor systems are equipped with multiple safety mechanisms, including protective barriers, motor overload protection, and emergency braking devices. At the same time, the glass conveyor performs real-time monitoring of glass positioning in both horizontal and vertical directions, ensuring continuous safety for both operators and equipment.

    Our loading and unloading robot achieves book-stacking precision, supported by advanced edge-detection algorithms and precise sensor data. These guide the robot to automatically adjust its stacking posture in real time, keeping the alignment error of adjacent glass sheets within ±1.5 mm. The robotic arm can perform static pick-and-place, single-piece flying grabs, and dual-piece flying grabs, ensuring flexible and high-precision handling of glass products.
