Float Glass Production Line
  • Float Glass Production Line
  • Float Glass Production Line
  • Float Glass Production Line
  • Float Glass Production Line
  • Float Glass Production Line

    • Float Glass Production Line

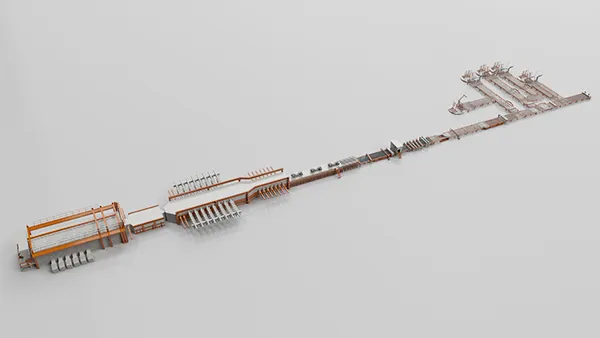

    Complete line for manufacturing float glass sheets

    Float glass production lines melt raw materials and spread the molten glass over a bed of molten tin, creating smooth, uniform sheets. This method is widely used to produce glass for construction, automotive, and electronic applications. The lines can also handle large formats, with sheet sizes up to 5.3 × 4.9 meters.

    Request a Quote
    Glass equipment used in float glass production line
    • Float Batch ChargerFloat Batch Charger

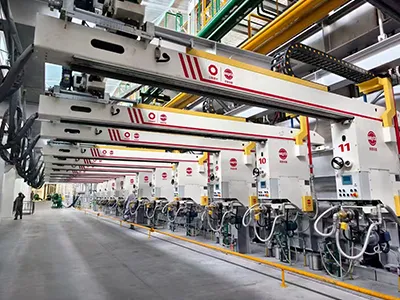

    • Float Glass Top RollerFloat Glass Top Roller

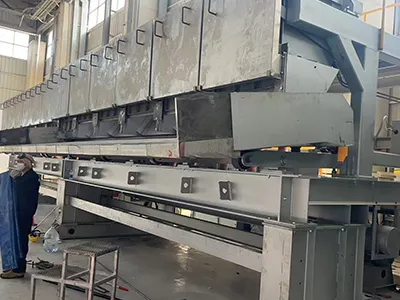

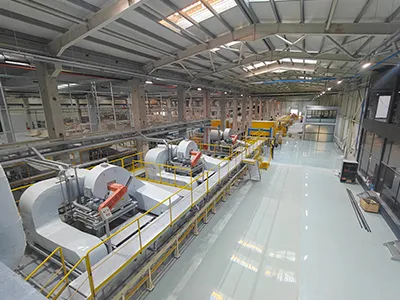

    • Float Glass Annealing LehrFloat Glass Annealing Lehr

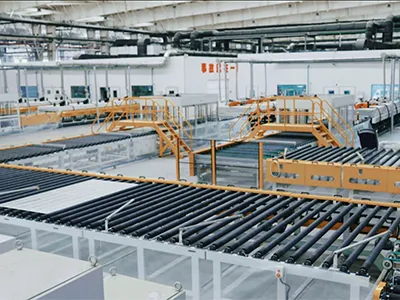

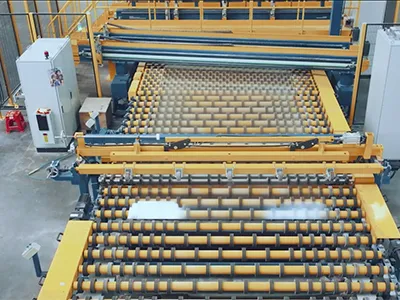

    • Cold End Equipment (glass cutting, glass conveying, glass stacking, etc.)Cold End Equipment (glass cutting, glass conveying, glass stacking, etc.)
    Specifications

    Hot End Equipment for Float Glass Production

    • Pull rate: 1000t/d
    • Glass thickness: 4-12mm
    • Glass ribbon pulling speed: 4-17.5m/min
    • Raw glass sheet width: 4668-5300mm
    • Finished glass sheet width: 4268-4900mm
    • Annealing lehr conveyor height: 950mm
    • Annealing lehr conveyor bearing seat spacing: 5830mm

    Cold End Equipment for Float Glass Production

    • Pull rate: 1000t/d
    • Glass thickness: 4-12mm
    • Glass ribbon pulling speed: 1050m/h matched to the maximum glass ribbon speed in annealing lehr, 1200m/h (design speed)
    • Raw glass sheet width: 4668-5300mm
    • Finished glass sheet width: 4268-4900mm
    • Glass sheet cutting size: 6000×4900mm (jumbo size), 6000×2450mm (medium size), 2000×1500mm (small size)
    • Center distance of bearing seat: 5680mm
    • Standard conveyor height: 1060mm (from breakout to operation area)
    • Conveyor speed: 4200m/h (maximum speed after breakout)
    • Glass stacking method: horizontal stacking of glass sheets

    Other: Space is reserved at the cold end for installing a stress thickness gauge and one powder spraying machine.
    Float Glass Produced on Our Lines
    Transparent Float Glass

    Transparent Float Glass

    • Minimum size: 1220 × 914 mm
    • Thickness range: 1.6 - 19 mm
    • Maximum size: 4880 × 3660 mm
    • Customized sizes available upon request
    Extra Clear Glass (Low-Iron Glass)

    Extra Clear Glass (Low-Iron Glass)

    • Minimum size: 1830 × 1220 mm
    • Thickness range: 2 - 15 mm
    • Maximum size: 6000 × 3660 mm
    • Customized sizes available upon request
    Why Choose BBKS as Your Glass Solutions Partner?
    Core Technology Breakthrough: Building Independent Technology
    8.5th Generation TFT-LCD Glass Substrate (Domestic Breakthrough)

    8.5th Generation TFT-LCD Glass Substrate (Domestic Breakthrough)
    This was China’s first production line for 8.5-generation ultra-thin float glass substrates that was fully designed and built in-house. It brought in platinum channel forming technology and tackled major challenges in high-generation glass production, such as formula development, furnace design, float tin bath, and annealing.

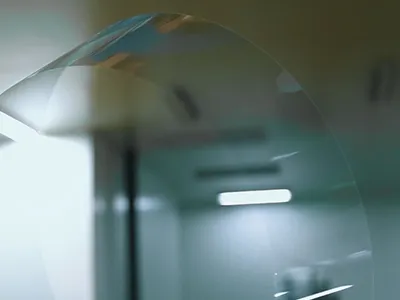

    Ultra-Thin Float Glass (World Record Holder)

    Ultra-Thin Float Glass (World Record Holder)
    The float glass production line can stably produce ultra-thin glass at 0.12 mm, recognized as the thinnest float glass worldwide. It also supports the production of automotive glass up to 5.4 meters wide, with advanced temperature control and internationally leading yield rates.

    Intelligent Production Line: Efficient, Precise, and Reliable
    AI-Powered Float Glass Manufacturing

    AI-Powered Float Glass Manufacturing

    • Smart cutting system: Achieves cutting accuracy within ±0.3 mm and increases yield by 4%.
    • Predictive maintenance: IIoT monitors equipment in real time, reducing downtime by up to 80%.
    • Digital twin monitoring: 3D visualization system that helps optimize the entire production process.
    Energy Savings that Boost Competitiveness

    Energy Savings that Boost Competitiveness

    • Smart combustion control: Improves furnace thermal efficiency by 20%.
    • Cost reduction: Helps a single line save more than 1.5 million RMB in operating costs each year.
    Global Market Presence

    Global Market Presence

    • Holds around 75% market share in China.
    • Glass processing machines are also exported to Russia, South Korea, Southeast Asia, the Middle East, and other regions.
    Get in Touch for More Information
    Our Glass Equipment Covers

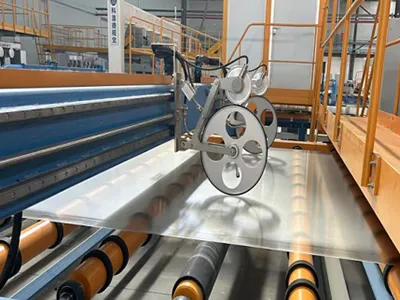

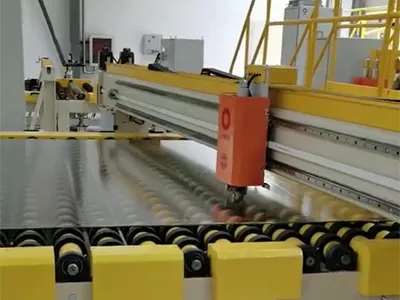

    The float glass line uses a cutting system that combines blade management and motion control. It works out the best cutting plan in real time based on order details and defect data. Multi-head cutters can handle different glass sizes and switch between cutting bridges when needed, keeping production smooth and stable.

    The electronic glass line uses AI visual inspection to detect defects with 99.5% accuracy. The glass production process is fully automated, reducing manual work and keeping production steady. The production line can also be monitored and optimized remotely through digital twin technology. With these advantages, the line produces ultra-thin electronic glass as thin as 0.12 mm on a stable basis.

    Visual inspection systems check the glass in real time and can spot defects such as bubbles or scratches. Smart algorithms cut down on false results, and high-precision sensors keep track of size and thickness. When combined with production data, it ensures the glass meets quality standards and makes it easier to spot problems quickly.
