Solar Glass Rolling Machine
  • Solar Glass Rolling Machine
  • Solar Glass Rolling Machine

    • Solar Glass Rolling Machine

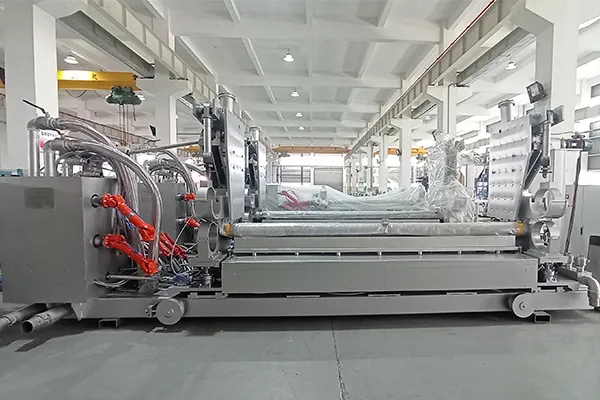

    Glass rolling machine for continuous production of photovoltaic (PV) glass

    The solar glass rolling machine works as the main forming unit in a rolled glass production line. Positioned between the melting furnace and the annealing lehr, it works together with the lift-out roller to shape the glass ribbon while it is still hot and flexible. Through this forming process, the glass processing line can reliably produce ultra-thin glass sheets with thicknesses down to 1.1 mm, while keeping stable mass production at around 1.4 mm thickness. It can also handle panels up to 4000 mm wide, which are widely used for manufacturing large solar modules. Since the glass rolling system works with high precision, the glass processing line reaches yield rates above 85%, ensuring consistent production of PV glass with excellent light transmission.

    Request a Quote
    Specifications
    Power 32.4kW
    Working pressure 0.6MPa
    Working accuracy ±0.02mm
    Production capacity 600t/d (max.)
    Working pressure 15t
    Glass thickness 1.2-4mm
    Glass width 2.8-5.4m
    Top/bottom roller diameter 240-450mm (customizable)
    Glass rolling speed 57.85-578.5m/h (customizable)
    What We Offer
    • Flat-plate rolling machineFlat-plate rolling machine
    • Self-weight rolling machineSelf-weight rolling machine
    • Lift-out rollerLift-out roller
    Equipment Details
    • Main Rolling Machine Unit

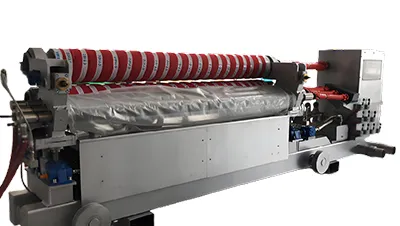

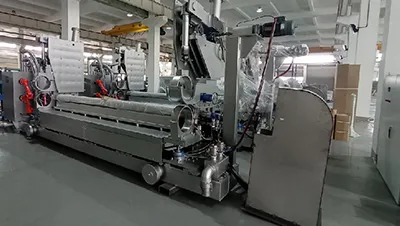

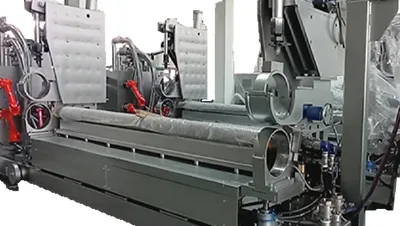

      Main Rolling Machine Unit
      The main part of the rolling machine includes the rollers that shape the glass, support rollers, the drive system, cooling units, and an air-cushion system. It also has adjustment controls on all sides, so operators can set the position of the rollers and keep the glass sheet even and stable while it’s being formed.
    • Lift-Out Roller

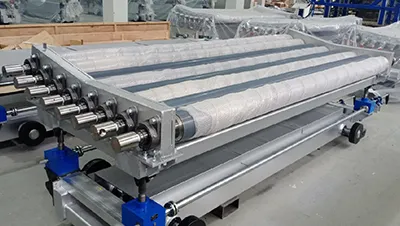

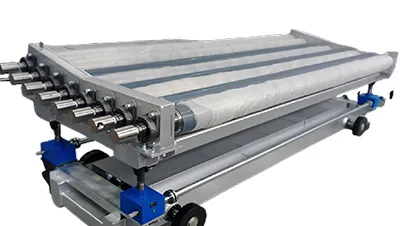

      Lift-Out Roller
      The lift-out roller has a sturdy steel frame, with cooling water running inside the tubes to keep it from bending under high heat. This design helps the glass stay stable as it moves through the forming stage.
    • Pressure Rods

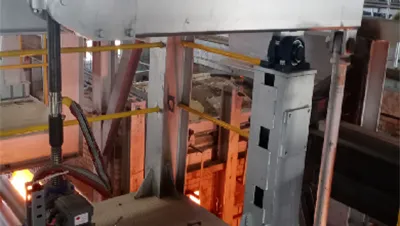

      Pressure Rods
      Two pressure rods are installed on the upper part of the rolling machine, one on the drive side and the other on the non-drive side. Each rod can push with up to 20 tons of force, giving the machine the strength to keep the glass ribbon flat and under control while it’s being shaped.
    Customer Cases
    Customer Setup Furnace Capacity Units Installed Ribbon Width Start of Operation Thickness Range
    Almaden One furnace with two glass production lines 320 t/d 4 units 2570 mm April 2018 1.6-4 mm
    Egypt Float Glass One furnace with one glass production line 120 t/d 2 units 2500 mm March 2021 2-4 mm
    India Adani One furnace with four glass production lines 650 t/d 8 units 3150 mm February 2022 1.6-4 mm
    Turkey One furnace with two l glass production lines 320 t/d 4 units 3150 mm March 2022 1.6-4 mm
    SYP One furnace with two glass production lines 320 t/d 4 units 2850 mm July 2021 1.6-4 mm
