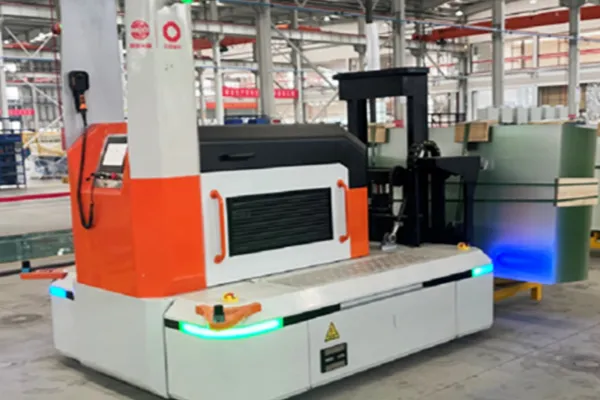

    Automated guided vehicles used in glass plants to flexibly transport glass sheets and glass products

    Automated guided vehicles (AGVs) are increasingly used in glass plants to transport flat glass sheets and glass fiber products with safety and efficiency. The system integrates intelligent software and automation, ensuring fast, flexible, and reliable handling throughout the production process.

    • Power: 30kW
    • Working pressure: 20MPa (hydraulic)
    • Working accuracy: ±10mm
    • Speed: 1.2m/s
    • Max. load capacity: 6t
    Request a Quote
    Product Details
    • AGV Glass Transport System

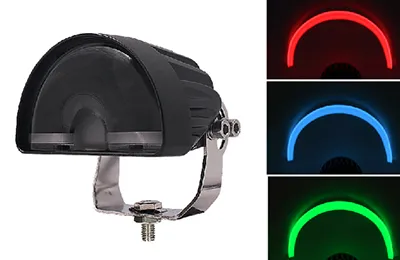

      Each AGV is equipped with warning lights and sound alarms (up to 105 dB) to notify surrounding personnel of movement, including driving and reversing. Forklift safety lights create a clearly visible zone around the vehicle, forming a dynamic “safety perimeter.”
    • AGV Glass Transport System

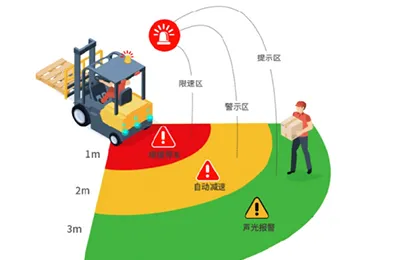

      The system uses lidar sensors with a full 360° detection range and a maximum distance of 120 m. It automatically slows down when obstacles are within 1-10 m and stops completely if anything is detected within 0.2-1 m.
    • AGV Glass Transport System
      Fitted with safety edge sensors, the AGVs provide additional protection by detecting contact or pressure, preventing accidents and safeguarding operators.
    Rlated Glass Processing Equipment
    Get in Touch for More Information
    Our Glass Equipment Covers

    The solar glass washing machine is equipped with lifting and frame mechanisms, conveyors, spray-and-brush units, air knives with fans, water supply systems, photoelectric limiters, and control cabinets. It adopts an innovative sectional spraying method that improves water efficiency and enhances the overall cleaning effect, meeting the cleanliness demands of each process stage.

    The automatic packaging line uses robotic arms to apply corner and side protectors, while the integrated sensors monitor and control the clamping force. Storage bins can hold up to three different protector sizes at once, with each side accommodating three bins to allow up to 12 hours of continuous operation without refilling. The bins are designed to be pulled out for refilling without stopping production. A specially designed arrow-type joining mechanism along the length direction further ensures smooth and stable operation.

    AGV vehicles perform automatic operations from loading to unloading with minimal human intervention. They flexibly connect raw glass to processing lines and from processed glass to automatic packaging and warehousing. The transport system enables fully intelligent order scheduling and warehouse management, allowing unmanned operation throughout the process. By replacing manual work, it significantly reduces labor and training costs while increasing operational efficiency.
